: BOLTS |
|
|

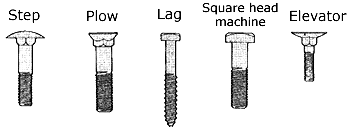

MINUMUM THREAD LENGTH (CAP SCREWS, CARRIAGE, MACHINE, ELEVATOR, STEP
AND COUNTERSUNK HEAD BLOTS) |
Diameter |
1/4 |
5/16 |
3/8 |
7/16 |
1/2 |
5/8 |
3/4 |
7/8 |
1 |
11/8 |
11/4 |
13/8 |
11/2 |
15/8 |
13/4 |
17/8 |
2 |
Lentghs thru 6" |
3/4 |
7/8 |
1 |
11/18 |
11/4 |
11/2 |
13/4 |
2 |
21/4 |
21/2 |
23/4 |
3 |
31/4 |
31/2 |
33/4 |
4 |
41/4 |
Overe 6" Length |
1 |
11/18 |
11/4 |
13/8 |
11/2 |
13/4 |
2 |
21/4 |
21/2 |
23/4 |
3 |
31/4 |
31/2 |
33/4 |
4 |
41/4 |
41/2 |
|
|
|
